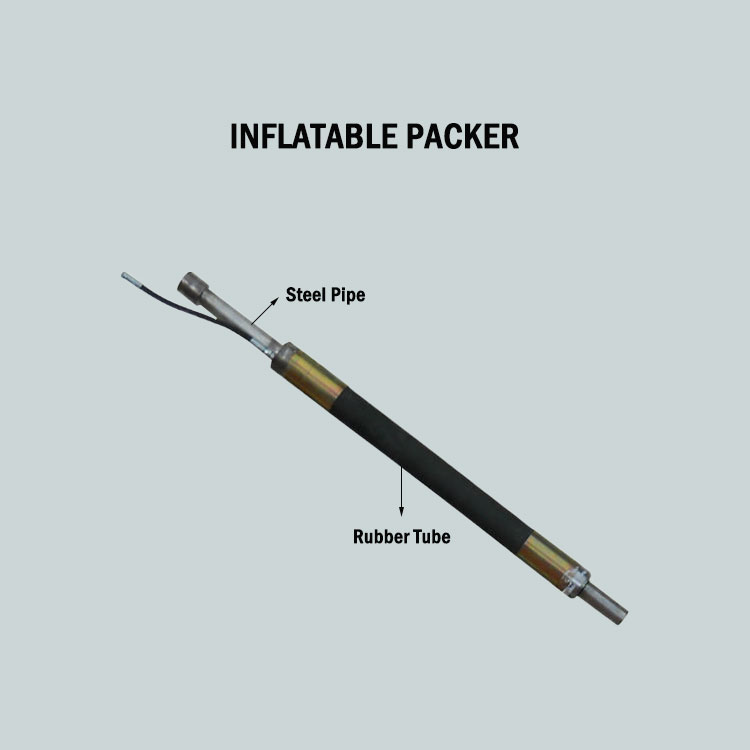

The inflatable packer is one of grouting injection packer, which is suitable for coal mine water injection, dust reduction, and rock engineering grouting. The inflatable packer is made of rubber hose, steel pipe and connecting nipple, and is a very useful grouting sealing part.
The expansion body is fastened to the hole wall by using the friction resistance generated by the rubber, and then the chemical materials is injected into the crack through the steel pipe. After the grouting injection is completed, the rubber expansion body returns to its original shape by unloading the pressure, which is due to the high elasticity of the rubber and the ability of the reinforcement layer.
As the import part of inflatable packer, the rubber tube adopts a double-layer reinforced structure design, with excellent mechanical properties and safety and reliability. The bursting pressure and tensile strength are greatly improved. The synthetic formula of nitrile rubber (NBR) is adopted, which combines the elasticity of natural rubber and the durability of synthetic materials. During the construction grouting and injection, the waste of chemical grouting materials is reduced. The surface convex pattern provides 1.5 times the friction coefficient to ensure the safety of operation.
| Layer | Hard Index | Alkaline Resistant | Temperature Range | Anti Slip Index |
| 2 fabric, 2 wire, 4 fabric, 4 wire etc. | 60~90 | 6.5~8.5 | 5℃~70℃ | 0.6 |
We supply inflatable packers in different diameters and lengths to meet different application requirements.
| Size | Outer Diameter mm | Inflatable mm | Applying hole size mm | Working pressure Mpa | Test pressure Mps | Burst pressure Mpa |
| 32 | 50±2 | 90±4 | 60 | 6 | 12 | 24 |
| 38 | 55±2 | 95±4 | 65 | 5 | 10 | 20 |
| 45 | 63±2 | 100±4 | 75 | 4 | 8 | 16 |
| 51 | 69±2 | 110±4 | 90 | 4 | 8 | 16 |
| 64 | 84±2 | 120±4 | 100 | 3 | 6 | 12 |
| 76 | 94±2 | 130±4 | 110 | 3 | 6 | 12 |
| 89 | 109±2 | 140±4 | 120 | 3 | 6 | 12 |
Excellence rubber layer: The rubber can withstand high burst pressure, good sealing performance.
Corrosion-resistant steel pipe: The pipe can resistant to chemical erosion, which have long working life.
Reuseful: The inflatable packer can be using much time, and reduce project costs.
Water is injected into the coal body to extract gas. After water injection is effective, dust can be reduced by more than 80%, improving the working environment of workers.

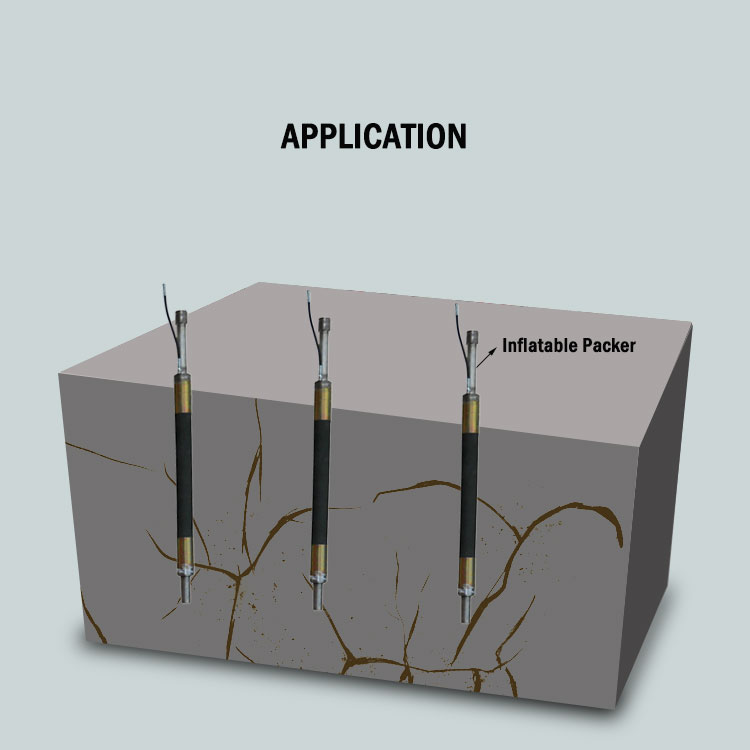

Chemical grouting: The grouting not only seals the leakage layer, but also repairs cracks, improves the compactness of the rock, and increases the engineering project life.
