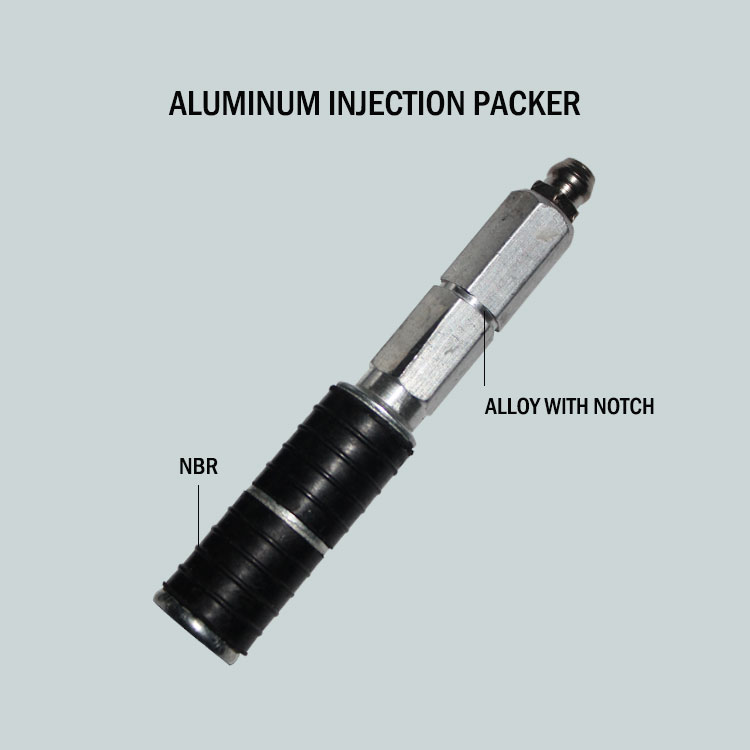

Aluminum injection packer



In grout injection projects, aluminum injection packer is using large quantities. The rubber is good for expand and stable in the hole, the nipple is tighten good and easy to screw off, the indentation aluminum body is good for cutting after PU injection.



aluminum injection packer china supplier





Specification

Our injection packer is made of high quality aluminum alloy, and it have good mechanical properties. Even if left in the building after grout injection, the aluminum packer can play a reinforcement role.

Al Si Fe Cu Mn Mg Zn
Remainder 6.5~7.5

≤0.20

≤0.20

≤0.10

0.30~0.45

≤0.10





Injection packer data sheet

The aluminum packer have big hole size, it have good fluid with any viscosity polyurethane and epoxy. For more information, welcome to load it.

Item

Diameter of

rubber seal mm

Length of

Packer mm

Inside diameter

of tube mm

Inside diameter

of Nipple mm

Break Pressure

(bar)

Pressure for

Nipple opening (bar)
A10 13 100 5.3 1.5 400 25 ~ 250

For more information, welcome to down load.



Supplying range

We can do mechanical grout packer size by customized.

Pressure Diameter Length Rubber type

Low 20-30 bar

High 200 -220bar

 10mm, 13mm

80mm, 100mm, 150mm, 300mm, 500mm

Cross, line





Feature

  • Good compression resistance.
  • Corrosion resistance.
  • Rubber oil resistance and aging resistance.
  • The nipple can adjustable pressure, good circulation at any situation.



Application

  • Injection and sealing construction of cracks, expansion joints, construction joints, and structural joints of various buildings and underground concrete projects.
  • Leakage injection and reinforcement of drilling walls for geological drilling projects.
